Description

belt-driven-roller

rolling-conveyor

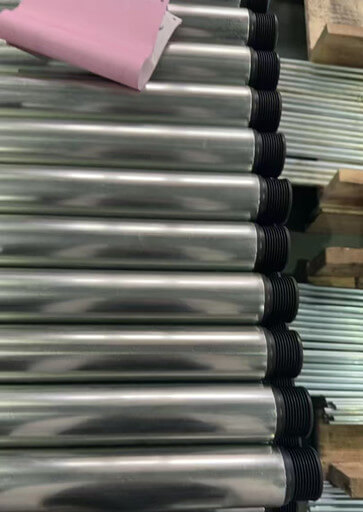

Poly-Vee Driven Heavy Duty Conveyor Roller

  • The poly-V pulley is located at the end of the roller, which separates the drive area and the conveying area, making the conveying smooth, high-speed, and low noise.
  • For 1 3/8 and 1.9 rollers, the bearing end cap consists of a precision ball bearing, a polymer housing and end cap seal. Combined they provide a smooth and quiet running roller. Poly-V pulleys for 2.5″ diameter rollers are steel and welded to the tube.
  • ISO9982 PJ series poly-V. Total of 9 grooves at 2.34mm pitch for 1 3/8 and 1.9 rollers. Total of 16 grooves are provided for 2.5″ rollers (2 sections of 8 each).
  • Various PJ belt lengths available to suit different roller centers.
  • Suitable for the high speed applications. Maximum speed varies with roller length and diameter. Maximum speed up to 120m/min.
  • Temperature range: -5°C – +40°C.
